Development

Note

The source code of kmos3 is maintained on a GitLab run by the Max Planck Computing and Data Facility (MPCDF) which requires an account in order to contribute yourself.

Contributions of any sort are incredibly valuable and we highly encourage contributing to the kmos3 source code. If you have any questions, found a bug, or have suggestions for new features you can either

send us an email to kmos3.at.fhi.mpg

or

open issues on the GitLab.

GitLab Access

Gaining access to the MPCDF GitLab is simple. Just send us an email to kmos3.at.fhi.mpg with your name and an email address. After accepting the MPCDF terms and conditions and logging into the GitLab once, we can add the account to the repository and you will be able to open issues and push your code.

Issues

Please keep issues short and use descriptive titles. Provide us with a short description of your request as well as the use case and if applicable state the versions of the software and dependencies. This gives us the opportunity to reproduce the problem.

Documentation

The documentation is part of the kmos3 source code and contributing to it works the same way as with kmos3 itself. Currently, we are working on its revision and updates will be published as soon as possible.

Branches

main (protected, default): Stable release

develop (protected): Latest features and fixes

feature_*: Create a feature branch and put your work here

Tags

Tags for (pre-)releases are of the form X.X.X(rcX).

Commits

Before committing always check the code style, lint, and try to keep a clean commit history. To this end, have a look at Google’s Python style guide and use pep8 as well as pylint. In the future, we plan to automatize this task on the repository level.

In the usual case where only one person is working on a feature branch, rebases, amendments, and force pushes are allowed.

Merges

First create an issue and work on it on a dedicated feature branch, which is based on the develop branch. As soon as you are done run the tests locally. Think about the option to squash certain commits for a more streamlined commit history.

Only after passing the tests, rebase your feature branch with develop and then create the merge request with the target develop in the GitLab UI using the “Create merge request” button within the issue.

The final merge should then be performed by the merge request author after a positive review and the feature branch should be deleted.

CI/CD

GitLab will run a CI/CD pipeline to run the tests upon changes to the develop and main branch. If your code passed these tests the pipeline will (usually) also succeed. In the unlikely case of failures one needs to resolve them before requesting a review.

Developer’s Guide

Disclaimer

The information in this guide is provided with the hope that it will ease your way into the codebase kmos3, but it may contain errors. In the end, only the interpretation of the code itself can really let you effectively add functionality to kmos3.

Introduction

This guide intends to work as an introduction into the internal structure of kmos3, including both the automatically generated Fortran code as well as the code generation procedure. As the name suggest, the intended audience are those who want to contribute to kmos3 as developers. This guide will assume that you are familiar with the way in which kmos3 is used. If that is not the case, you should start reading the sections of the Tutorials and Topic Guides intended for users and/or go through the intro2kmos3 tutorial.

For developers of the project, repository and branch management will follow this flow chart:

How to Edit, Install, and Test Your Changes Locally

If you want to make changes to the source code, you can edit the respective file(s) in the cloned repository. After that, be sure to have activated the virtual environment and reinstall kmos3

source $HOME/kmos3_venv/bin/activate
pip install .

Before pushing to GitLab, you should enter the the tests directory and run the unit tests.

Some Nomenclature

For some terms used frequently in this guide, there might exist some ambiguity on exact meaning. Here we present some definitions to try to alleviate this. Probably some ambiguity will remain, but hopefully not anything that cannot be discerned from context.

site

In kmos3, this can have two different interpretations: either a specific node of the lattice or a type of site, e.g., a crystallographic site (top, fcc, hollow…). In this guide we use the former meaning: a specific position on the simulation lattice. When we need to indicate the second meaning, we will use site type.

coordinate

Indicates the relative position of a site in the lattice with respect to some other site. In general, a coordinate will be given as a pair of a site and an offset representing the relative positions of the unit cells (in units of the unit cell vector). The site used as reference will depend on the context.

process

A set of elementary changes that can occur on the lattice state on a single KMC step. A process is defined by a list of conditions and actions, and a rate constant expression.

executing coordinate

A coordinate associated to each process to be used as a reference for the relative positions of conditions and actions when defining the Fortran routines. In local_smart and lat_int the executing coordinate is found with the help of the kmos3.types.Process.executing_coord method. In otf the concept of executing coordinate is not used. The reference position in the lattice is the central position implied by the user during model definition, i.e., the position in which coordinates have offset = (0, 0, 0).

event

A process for which a specific site has been selected.

active event

An event that can be executed given the current state of the lattice, i.e., an event for which all associated conditions are fulfilled.

lateral interactions

For kmos3 models built for the local_smart or lat_int, we will say that such model includes lateral interactions if there is one or more groups of processes with the following characteristics:

Their actions are all identical.
The conditions occurring on the same sites as the actions are identical.
There is a group of additional sites in which these processes have conditions, but these conditions are different for each process in the group.

These processes represent the same change in the lattice, but under a difference state of the rest of the sites. These groups of processes are typically used to account for the effect of surrounding species on the values of the rate constants, i.e., lateral interactions.

lateral interaction group

The group of processes defined by items a, b, and c above.

bystander (local_smart or lat_int backends)

The set of conditions of item c above, i.e., conditions of a process in a lateral interaction group that does not have an action associated to it.

bystander site/coordinate

A site/coordinate associated with a bystander.

participating sites

Sites associated with actions from item a and conditions from item b of the definition of a lateral interaction group.

lateral interaction event group

A collection of events occurring on the same lattice site and whose associated processes belong to the same lateral interaction group. Due to the nature of lateral interaction groups, only one of such events can be possible in a lattice at any given time.

bystander (otf backend)

In the otf backend, the concept of bystander is explicitly included in the model definition, i.e., it is a new class kmos3.types.Bystander exclusive to this backend. An otf model is said to include lateral interactions if one of its processes includes such bystanders. Note that models without lateral interactions should not be built using the otf backend, as local_smart will definitely be more efficient.

The Three Backends

While most kmos3 users will only need to worry about the Python interface to build and run a model, developers will also need to familiarize with the Fortran core code. The exact structure of this code depends on the backend that one selects. Which backend is most appropriate depends on the nature of the KMC model being implemented. Below we present a qualitative description of each backend.

`local_smart`

This is the original kmos3 backend and has been used as a basis and inspiration for the other backends. It was built with the implicit objective of offering the best run time performance at the expense of memory usage. For this reason, a key element in this backend is a precalculated list of rate constants, stored in the base/rates array.

This is the most efficient backend if the number of different rate constants is reasonably small.

For models with a very large number of different processes nproc (such as cases in which large lateral interaction groups exist) some undesirable effects can occur:

The time needed to run a KMC step can become large, as it scales as $\mathcal{O}($ nproc $)$ .
The bookkeeping data structures, which scale in size with the total number of processes, can become too big for available memory.
The size of individual source code files can become very large, making compilation very slow or even impossible due to memory requirements.

`lat_int`

The lat_int backend is the first attempt to alleviate the problems of local_smart for models with lateral interaction groups of moderate size. The main differences between them is that lat_int structures the generated code around the different lateral interaction groups and splits the source files accordingly. This way compilation is faster and requires less memory. A necessary consequence of this is that the logic for the lattice update needs to be different.

Todo

I (who?) seem to recall that there are models for which lat_int outperforms local_smart, even when local_smart can eventually compile and run. This should be verified and interpreted (i.e., is lat_int smarter than local_smart some times? If so, why?).

`otf`

For processes with lots of lateral interactions, i.e., very large lateral interaction groups, keeping a list of precalculated rate constants (and the proportionally large bookkeeping arrays) is unfeasible. The alternative is to evaluate rate constants during runtime, i.e., on the fly. KMC models built using the otf backend do just that. To accommodate for this, the concept of a process in otf is different to that in the other backends. In otf, all members of a lateral interaction group are represented by a single process. Therefore, the total number of processes and, consequently, the size of bookkeeping arrays is much smaller. The counterpart from this improvement is that now a KMC step scales linearly with the system size (instead of being constant time).

The Fortran Code Files

Here, we present a description of the different files in which the source code is split. We use the local_smart backend as a basis for this description, as it is the original backend and contains the fewest files. For the other backends, we will only explain the differences to local_smart.

All kmos3 models contain three main source files: base.f90, lattice.f90, and proclist.f90. Each of these source files defines a module of the same name. These modules are exposed to the Python interface.

It is important to know that some of the Fortran code comes from the fortran_src directory and some comes from the file io.py, so both locations should be checked, when dealing with the Fortran source code.

`local_smart`

`base.f90`

As its name suggests, base.f90 contains the lowest-level elements of the model. It implements the KMC method in a 1D representation of the lattice (i.e., the ND lattice of the problem, flattened). The base module contains all the bookkeeping arrays described in Key Data Structures and the routines to

allocate and deallocate memory
update the bookkeeping arrays for the lattice configuration and available processes
using these arrays to determine the next process to be executed
keep track of KMC time and total number of steps
keep track of the number of executions of each individual process (procstat)
save an reload the system’s state

Many routines in base take a variable site as input. This is an index (integer value) that identifies a site in the 1D representation. The contents of base.f90 are (mostly) fixed, i.e., it is (almost) the same file for all kmos3 models (as long as they use the same backend).

`lattice.f90`

The role of the lattice.f90 is to generate the map from the ND lattice (N=1, 2, 3) to the 1D lattice that is handled by base.f90. The lattice module imports subroutines from the base module. Besides the look-up arrays lattice2nr and nr2lattice, used to map to and from the 1D lattice, this module also implements wrappers to many of the basic functions defined in base.f90. Such wrappers take now a 4D array lsite variable, designating the site on a 3D lattice, instead of the single integer site used by base. The first three elements of this array indicate the (x, y, z) position of the corresponding unit cell (in unit cell vector units), while the fourth indicates the site type. In cases of lower dimensional lattices, some elements of the site array simply always stay at a value of 0.

The lattice.f90 file needs to be generated especially for each model, but only changes if the lattice used changes (e.g., the number of site types or the dimension of the model).

`proclist.f90`

proclist.f90 includes the routines called by the Python interface while running the model. In addition, it encodes the logic necessary to update the list of active events (i.e., the main bookkeeping arrays, avail_procs and nr_of_sites), given that a specific process has been selected for execution. The module imports methods and variables from both the base and lattice modules.

The proclist.f90 files needs to be generated specially for each model and is the file that changes most often during model development, as it is updated every time a process changes.

`lat_int`

`proclist.f90`

Some of the functionality of local_smart has been moved to different source files. While the functions called by the Python interface during execution remain here, the logic to update the list of active events is moved to the nli_*.f90 and run_proc_*.f90 files. In addition, constants are also defined in an independent module in the separate file proclist_constants.f90.

`proclist_constants.f90`

Defines a module declaring several constants used by the proclist, nli_* and run_proc_* modules.

`nli_<lat_int_nr>.f90`

There is one of such file for each lateral interaction group. These source files are enumerated starting from zero. Each of them implements a module called nli_<lat_int_nr>, which contains a single function nli_<lat_int_group>. <lat_int_group> is the name of the lateral interaction group, which coincides with the name of the first (lowest index) process in the group. These functions implement the logic to decide which process from the group can occur on a given site, if any.

`run_proc_<lat_int_nr>.f90`

There is one of such file for each lateral interaction group. These source files are enumerated starting from zero. Each of them implements a module called run_proc_<lat_int_nr>, which contains a single subroutine run_proc_<lat_int_group>. <lat_int_group> is the name of the lateral interaction group, which coincides with the name of the first (lowest index) process in the group. This routine is responsible for calling lattice/add_proc and lattice/del_proc for each lateral interaction group that should potentially be added or deleted. For this, it passes results of the nli_<lat_int_group> functions as arguments, to ensure correct updates of the list of active events.

`otf`

`proclist.f90`

Similar to lat_int, this file contains the functions called by the Python interface at runtime. Contrary to local_smart, the logic for the updates of the active event list is in the run_proc_<proc_nr>.f90 files and constants shared among different modules are defined in proclist_constants.f90.

`proclist_constants.f90`

Defines a module declaring several constants used by the proclist, proclist_pars and run_proc_* modules.

`proclist_pars.f90`

This file implements the modules proclist_pars (process list parameters) and takes care of providing functionality that only existed at the Python level in the earlier backends. More importantly, it implements the functions used to evaluate rate constants during execution. In more detail it

implements the Fortran array userpar to access user-defined parameters at Fortran level and functionality to update them from Python.
implements a chempots array for accessing the chemical potentials in Fortran, when necessary.
includes the routines gr_<proc_name> and rate_<proc_name>, which are used to evaluate the rate constants on the fly.

`run_proc_<proc_nr>.f90`

There is one of such file for each process in the model. They implement the modules run_proc_<proc_nr>, each containing a run_proc_<proc_name> subroutine. These routines contain the decision trees that figure out which events need to be activated or deactivated and call the corresponding functions from base (add_proc and del_proc).

Key Data Structures

Here, we describe the most important arrays required for bookkeeping in kmos3. Understanding what information these arrays contain is crucial to understand how kmos3 selects the next KMC process to be executed. This procedure is explained in more detail in One KMC Step in kmos3. All these data structures are declared in the base module and their dimensions are based on the flattened representation of the lattice in 1 dimension.

Important Scalar Variables

nr_of_proc (int): The total number of processes in the model.
volume (int): The total number of sites in the lattice.

Important Arrays

`rates`

Dimension: 1
Type: float
Size: nr_of_proc

Contains the rate constants for each process. This array is kept fixed during the execution of the KMC algorithm, and is only to be changed through the Python interface.

In the otf backend, rate constants are obtained on-the-fly during the execution of the KMC algorithm. They are stored in the rates_matrix array and the rates array contains simply a set of default rate constant values. These values can optionally (but not necessarily) be used to help with the calculation of the rates.

`lattice`

Dimension: 1
Type: int
Size : volume

This array contains the state of the lattice, i.e., which species sits on each site.

`nr_of_sites`

Dimension: 1
Type: int
Size: nr_of_proc

This array keeps track of the number of currently active events associated to each process, i.e., it holds the number of different sites in which a given process can be executed.

`accum_rates`

Dimension: 1
Type: float
Size: nr_of_proc

This array is used to store partial sums of rate constants ordered according to process index. In local_smart and lat_int, thanks to the fact that all copies of a process have an equal rate constant, the values of this array can be calculated according to

(1) $\mathrm{accum\_rates}(i) = \sum_{j=1}^{i} \mathrm{rates}(j) \cdot \mathrm{nr\_of\_sites}(j)$

In otf rate constants for a given process can be different for a given site. Therefore, evaluation is more involved, namely

$\mathrm{accum\_rates}(i) = \sum_{j=1}^{i} \sum_{k=1}^{\mathrm{nr\_of\_sites}(j)} \mathrm{rates\_matrix}(j, k)$

In all backends, the contents of accum_rates are re-evaluated in every KMC step.

`avail_sites`

Dimension: 3
Type: int
Size: nr_of_proc ⋅ volume ⋅ 2

This is arguably the most important bookkeeping array for kmos3, which keeps track of which processes can be executed at each site on the lattice, i.e., it keeps track of all active events. To accelerate the update time of this array (see Updating avail_sites), its information is duplicated. In practice, avail_sites can be considered as two 2D arrays of size nr_of_proc ⋅ volume.

Each row in avail_sites( :, :, 1) correspond to a process, and contains a list of the indices for the sites in which said process can occur according to the current state of the lattice, i.e., a list of the sites with active events associated to this process. Each site index appears at most once in each row. This array is filled from the right. This means that the first nr_of_sites(i) elements of row i will be larger than zero and smaller or equal than volume, while the last (volume - nr_of_sites(i)) elements will all be equal to zero. The elements of the rows of avail_sites( :, :, 1) are not sorted and their order depends on the (stochastic) trajectory the system has taken.

The rows on avail_sites( :, :, 2) function as an index for the rows of avail_sites( :, :, 1). Given 1 <= i <= nr_of_proc and 1 <= j <= volume, if process i can occur on site j, then avail_sites( i, j, 2) = k, with k >= 1 and such that avail_sites( i, k, 1) = j. Conversely, if process i cannot occur on site j, then avail_sites( i, j, 2) = 0 and no element in avail_sites( i, :, 1) will be equal to j.

../_images/avail_sites.svg — An example of `avail_sites( :, :, 1)` (left) and `avail_sites( :, :, 2)` (right) arrays for a model with 4 processes and 10 sites.

`procstat`

Dimension: 1
Type: long int
Size: nr_of_proc

This array is used to keep track of how many times each process is executed, i.e., the fundamental result of the KMC simulation. It is used by the Python interface to evaluate the turnover frequencies (TOFs).

`otf`-Specific Arrays

The otf backend uses all the bookkeeping arrays from the other two backends, but additionally requires the following arrays.

`accum_rates_proc`

Dimension: 1
Type: float
Size: volume

This array is updated in every KMC step with the accumulated rate for the process selected for execution. This is necessary because the site cannot be selected uniformly random from avail_sites, but needs to be picked with a binary search on this array.

`rates_matrix`

Dimension: 2
Type: float
Size: nr_of_proc ⋅ volume

This matrix stores the rate for each current active event. The entries of this matrix are sorted in the same order as the elements of avail_sites( :, :, 1) and used to update the accum_rates array.

One KMC Step in kmos3

`local_smart`

The main role of the bookkeeping arrays from the last section, specially avail_sites and nr_of_sites, is to make KMC steps execute fast and without the need to query the full lattice state. The routines do_kmc_step and do_kmc_steps from the proclist module execute such steps. The diagram above represents the functions called by these routines.

During system initialization, the current state of the system is written into the lattice array and the avail_sites and nr_of_sites arrays are initialized according to this. With these arrays in sync, it is possible to evaluate accum_rates according to eq. (1). With this information, and using two random numbers $0 < \mathrm{ran\_proc}, \mathrm{ran\_site} < 1$ , the routine base/determine_procsite can select the next event to execute. This subroutine first selects a process according to the probabilities given by accum_rates. This is achieved by multiplying the total accumulated rate, i.e., the last element of accum_rates times ran_proc. The subroutine base/interval_search_real implements a binary search to find the index proc such that

$\mathrm{accum\_rates}(\mathrm{proc} - 1) \le \\ \mathrm{ran\_proc} \cdot \mathrm{accum\_rates}(\mathrm{nr\_of\_proc}) \le \\ \mathrm{accum\_rates}(\mathrm{proc}).$

This step scales $\mathcal{O}(\log($ nr_of_proc $))$ . Then, a site is selected with uniform probability from the (non-zero) items of avail_sites( proc, :, 1). This is valid because all individual events associated to a given processes share the same rate constant. This way, we avoid searching through the whole lattice, and we are able to select a site at constant time.

After this, the proclist/run_proc_nr subroutine is called with proc and site as arguments. This function first calls base/increment_procstat with proc as argument to keep track of the times each process is executed. Next, it uses the nr2lattice look-up table to transform the scalar site variable into the 4D representation (see lattice.f90). Finally, this function calls the methods which actually update the the lattice state and, consistent with this, the bookkeeping arrays. These are the proclist/take_<species>_<layer>_<site> and proclist/put_<species>_<layer>_<site> methods. Given a lattice site, take methods replace the corresponding species sitting there with the default species. The put methods do the converse. The set of put and take routines that need to be executed by each process are directly obtained from the conditions and actions from the process definition. These are hard-coded into the proclist/run_proc_nr routine, organized in a case-select block for the proc variable.

The proclist/take_<species>_<layer>_<site> and proclist/put_<species>_<layer>_<site> subroutines are arguably the most complex of a local_smart kmos3 model. Their ultimate goal is to call lattice/add_proc and/or lattice/del_proc to update avail_sites and nr_of_sites in correspondence with the change in the lattice they are effecting. To do this they need to query the current state of the lattice. The structure of these routines is described below.

The actual update of avail_sites and nr_of_proc is done by the base/add_proc and base/del_proc functions. Under Updating avail_sites below, we explain how these functions make use of the structure of avail_sites to make updates take constant time. Once these arrays have been updated, the bookkeeping arrays are again in sync with the lattice state. Therefore, it is possible to reevaluate accum_rates using eq. (1) and start the process for the selection of the next step.

The `put` and `take` Routines

These subroutines take care of updating the lattice and keeping the bookkeeping arrays in sync with it. When the occupation of a given site changes, some formerly active events need to be deactivated, while some formerly inactive events need to be activated. Figuring out which those events are is the main role of the put and take routines.

In kmos3, processes are represented by a list of conditions and a list of actions. An event is active if and only if all the conditions of its associated process are satisfied. As the put and take routines only look at the change of an individual site in the lattice, determining which events need to be turned off is straightforward: All active events which have a condition that gets unfulfilled on the site affected by the put/take routine will be deactivated. This is the first thing put/take routines do after updating the lattice.

Deciding which processes need to be activated is more involved. All inactive events with a condition that gets fulfilled by the effect of the put/take routine are candidates for activation. However, in this case, it is necessary to check the lattice state to find out whether or not such events have all other conditions fulfilled. A straightforward of accomplishing this is to sequentially look at each event, i.e.,:

FOR each candidate event E
    TurnOn = True
    FOR each condition C of E
    IF C is unfulfilled:
        TurnOn = False
        break
    ENDIF
    ENDFOR
    IF TurnOn is True:
    Activate E
    ENDIF
ENDFOR

However, chances are that many of the candidate events will have conditions on the same site. Therefore, a routine like the above would query a given lattice site many times for each execution of a put/take routine. For complex models with many conditions in the processes, this could become quickly the main computational bottleneck of the simulation.

The alternative to this naive approach, is to try to build a decision tree that queries the lattice state more efficiently. kmos3 generates such a decision tree using an heuristic algorithm. The main idea behind it is to group all the sites that would need to be queried and to sort them by the number of candidate events with conditions on them. A decision tree is built such that sites are queried on that order, thus prioritizing the sites that are more likely to reduce the number of processes that need activation. Such decision trees are implemented as select-case trees in the put/take routines and typically occupy the bulk of the code of proclist.f90. A more detailed description on how this is done is discussed below.

Updating `avail_sites`

../_images/add_proc.svg — Adding site 6 to process 1 in the `avail_sites( :, :, 1)` (left) and `avail_sites( :, :, 2)` (right) arrays.

The corresponding pseudocode looks like this:

$\mathrm{nr\_of\_sites}(\mathrm{proc}) \leftarrow \mathrm{nr\_of\_sites}(\mathrm{proc}) \\ \mathrm{avail\_sites}(\mathrm{proc}, \mathrm{nr\_of\_sites}(\mathrm{proc}), 1) \leftarrow \mathrm{site} \\ \mathrm{avail\_sites}(\mathrm{proc}, \mathrm{site}, 2) \leftarrow \mathrm{nr\_of\_sites}(\mathrm{proc})$

The avail_sites and nr_of_sites arrays are only updated through the base/add_proc and base/del_proc subroutines, which take a process index proc and a site index site as input arguments. Adding events is programmatically easier. As the rows of avail_sites( :, :, 1) are filled from the left, the new event can be added by changing the first zero item of the corresponding row, i.e., avail_sites(proc, nr_of_sites(proc) + 1, 1), to site and updating avail_sites( :, :, 2) and nr_of_procs accordingly. An example of this procedure is presented in the figure and pseudocode above.

../_images/del_proc.svg — Deleting site 5 from process 3 in the `avail_sites( :, :, 1)` (left) and `avail_sites( :, :, 2)` (right) arrays.

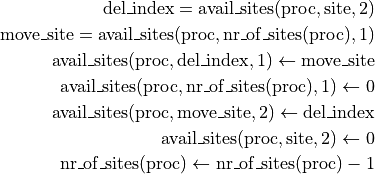

The corresponding pseudocode looks like this:

$\mathrm{del\_index} = \mathrm{avail\_sites}(\mathrm{proc}, \mathrm{site}, 2) \\ \mathrm{move\_site} = \mathrm{avail\_sites}(\mathrm{proc}, \mathrm{nr\_of\_sites}(\mathrm{proc}), 1) \\ \mathrm{avail\_sites}(\mathrm{proc}, \mathrm{del\_index}, 1) \leftarrow \mathrm{move\_site} \\ \mathrm{avail\_sites}(\mathrm{proc}, \mathrm{nr\_of\_sites}(\mathrm{proc}), 1) \leftarrow 0 \\ \mathrm{avail\_sites}(\mathrm{proc}, \mathrm{move\_site}, 2) \leftarrow \mathrm{del\_index} \\ \mathrm{avail\_sites}(\mathrm{proc}, \mathrm{site}, 2) \leftarrow 0 \\ \mathrm{nr\_of\_sites}(\mathrm{proc}) \leftarrow \mathrm{nr\_of\_sites}(\mathrm{proc}) - 1$

Deleting an event is slightly more involved, as non-zero elements in avail_sites( :, :, 1) rows need to remain contiguous and on the left side of the array. To ensure this, the element that would be deleted (somewhere in the middle of the array) is updated to the value of the last non-zero element of the row, which is later deleted. To keep the arrays in sync, avail_sites( :, :, 2) is also updated, by updating the index of the moved site to reflect its new position. Finally, avail_sites( site, proc, 2) is set to zero. The figure and pseudocode above shows an example for such an update. Having the information in avail_sites( :, :, 1) duplicated (but restructured) in avail_sites( :, :, 2) allows these update operations to be performed in constant time, instead of needing to perform updates that scale with the system size.

`lat_int`

The process of executing a KMC step with the lat_int backend is very similar as that of the local_smart backend. In particular, the way avail_sites, nr_of_procs and accum_rates are updated, as well as the selection of process and site indices proc and site that will be executed is identical. The only difference is the call of the proclist/run_proc_nr routine, as the routines for finding which events need to be (de)activated are implemented differently.

In lat_int, proclist/proc_run_nr does not call put and take subroutines (which do not exist in the lat_int code-base), but calls subroutines specific to each lateral interaction group run_proc_<lat_int_nr>/run_proc_<lat_int_group>. They do not directly implement a decision tree, but rely on the nli_<lat_int_nr>/nli_<lat_int_group> functions.

The nli_<lat_int_nr>/nli_<lat_int_group> perform the analysis of the lattice state. They take a site on the lattice and look at the conditions of the elements of the corresponding lateral interaction event group. Using this information, they return the index of the process (within the lateral interaction group), which can currently be executed. If none can, it returns 0.

A proclist/run_proc_<lat_int_group> routine first calls del_proc for each lateral interaction event group, which has a condition (including bystanders) affected by the changes in the lattice. The argument for del_proc will be the output of the corresponding nli_* functions, which will figure out which of the events is currently active (and can thus be deleted). After deleting processes, the lattice is updated according to the actions of the lateral interaction group. Once the new system state is set, add_proc is called for the same processes that del_proc was called, again using nli_* as argument. This way, the correct processes associated to the new state of the lattice will be activated.

This method works because of a slight, but important, difference in base/add_proc and base/del_proc between lat_int and local_smart. In local_smart, calling one of these functions with an argument proc=0 would lead to a program failure. In lat_int, this leads to the functions simply not adding or deleting any process to avail_sites.

`otf`

../_images/step_otf.png — A KMC step using the `otf` backend. Subroutines are represented by labeled boxed, located inside the box corresponding to the calling function. Variables (scalar or arrays) are indicated by gray boxes. An arrow pointing to a variable indicates that a subroutine updates it (or defines it). An arrows pointing to a subroutine indicates that the routine uses the variable or the output of the function. The passing of information occurs both through subroutine arguments and through module-wide shared variables; this distinction is not present in the diagram.

As expected, the algorithm for running a KMC step with otf differs considerably from local_smart and lat_int. Firstly, the update of the accum_rates is more involved, as different copies of the processes do not share a single rate constant. For this reason, it is necessary to use the rates_matrix array, which contains the current rate constants for all active events. The accum_rates array is updated according to

$\mathrm{accum\_rates}(i) = \sum_{j=1}^{i} \sum_{k=1}^{\mathrm{nr\_of\_sites}(j)} \mathrm{rates\_matrix}(j, k).$

The computational time to perform this summation now scales as $\mathcal{O}(\mathrm{nr\_of\_procs} \cdot \mathrm{volume})$ , instead of the $\mathcal{O}(\mathrm{nr\_of\_procs})$ for local_smart. Though this might seem like a disadvantage, it is important to notice that the value of nr_of_procs in otf can be smaller (potentially by several orders of magnitude) than in local_smart and thus otf can outperform local_smart for complex models (many lateral interactions) when using sufficiently small simulation sizes (small volume).

Once accum_rates is evaluated, base/determine_procsite proceeds to find the process index proc of the event to be executed. This is achieved by performing a binary search on accum_rates, exactly like in local_smart or lat_int. To select the site index, it is first necessary to evaluate

$\mathrm{accum\_rates\_proc}(i) = \sum_{k=1}^{i} \mathrm{rates\_matrix}(\mathrm{proc}, k),$

i.e., the partial sums of rates for the different events associated to process proc. Then, a second binary search can be performed on accum_rates_proc to find s such that

$\mathrm{accum\_rates\_proc}(s-1) \le \\ \mathrm{ran\_site} \cdot \mathrm{accum\_rates\_proc}(\mathrm{nr\_of\_sites}(\mathrm{proc})) \le \\ \mathrm{accum\_rates\_proc}(s).$

Therefore, s corresponds to the index of the selected site according to the current order of the avail_sites( :, :, 1) array. The site index as site = avail_sites( proc, s, 1).

The process of updating the lattice and the bookkeeping arrays is also rather different. As in the other backends, first proclist/run_proc_nr is called with proc and site as arguments. Besides calling base/increment_procstat, it is responsible for calling the adequate run_proc_<proc_nr>/run_proc_<proc_name> routine. There is one of such routine for each process and they play the same role as the put and take routines in local_smart. The main difference is that these routines are built for executing full processes instead of elemental changes to individual sites. These functions need to look into the state of lattice and determine

which events get one or more of their conditions unfulfilled by the executed event,
which events get one or more of their conditions fulfilled by the executed event and also have all other conditions fulfilled,
which events are affected by a change in one of their bystanders.

For events in a., run_proc_<proc_nr>/run_proc_<proc_name> run lattice/del_proc. For events in b. and c., rate constants are needed. This is done using functions from the proclist_pars module, as described below. With the known rate constants, run_proc_<proc_nr>/run_proc_<proc_name> calls lattice/add_proc for each event in b. and lattice/update_rates_matrix for each event in c. In otf, lattice/add_proc and base/add_proc take a floating point argument for the rate constant in addition to the usual site and proc arguments. More details on the structure of these routines will be given in the section on the translation algorithm.

Rate constants are evaluated using the proclist_params/gr_<proc_name>. These functions look at the current state of the lattice to evaluate a integer array nr_vars, which encodes the number of the different types of interactions that are present. This is used as input for the corresponding proclist_pars/rate_<proc_name>, which implements the user defined rate expressions. These can include user-defined parameters, which are encoded in Fortran with the userpar array in the proclist_pars module.

After proclist/run_proc_nr executes, the lattice, avail_sites, nr_of_sites, and rates_matrix are in sync again, and the next KMC step can start with the evaluation of accum_rates.

The Code Generation Routines

Routines called during the export of a kmos3 model.

$ kmos3 export model.xml
├── kmos3.cli.main
│   ├── kmos3.types.Project.import_file
│   └── kmos3.io.export_source
│       ├── kmos3.io.ProcListWriter.write_template
│       ├── kmos3.io.ProcListWriter.write_proclist
│       └── kmos3.io.ProcListWriter.write_settings
└── kmos3.utils.build
    └── numpy.f2py.main

As most of the source code described in the previous sections is generated automatically, it is crucial to also understand how this works. Code generation is contained in the kmos3.io Python submodule. The normal way to use this module is through the command line, i.e., invoking the kmos3 export command. The scheme above shows the subroutines/functions, which are called when this is done. The command line call itself is handled by the kmos3.cli submodule. Furthermore, the export procedure relies on the classes from the kmos3.types submodule, which define the abstract representation of the KMC model. Specifically, a model definition from an xml or ini file into a kmos3.types.Project object. The rest is done with the help of an instance of the kmos3.io.ProcListWriter class, which contains several methods that write source code. Specifically, Fortran source code is generated in one of three ways:

iles are copied directly from the kmos3 installation
code is generated with the help of a template file, which is processed by the kmos3.io.ProcListWriter.write_template method
code is written from scratch by one of the several kmos3.io.ProcListWriter.write_proclist_* methods

The format of the template files and how kmos3.io.ProcListWriter.write_template works is explained in the next section. The kmos3.io.ProcListWriter.write_proclist method calls several other methods in charge of building different parts of the source code. These methods are named according to the pattern kmos3.io.ProcListWriter.write_proclist_*. Which of these methods are called exactly depends on the backend being used. Some of such functions are specific to a certain backend, while others used for more than one backend. This is detailed in write_proclist.

Source File Templates

Template files are located in the kmos3/fortran_src/ folder of the kmos3 source code and have the mpy extension. Each line of these files contains either

Python source code or
template text prefixed with #@.

kmos3.utils.evaluate_template processes these files to convert them into valid Python code. The Python lines are left unchanged, while the template lines are replaced by code adding the content of the line (i.e., things after the #@) to a string variable result. Template lines can contain placeholders, included as a variable name enclosed in curly brackets ( { and } ). If those variable names are found within the local variables of the corresponding kmos3.utils.evaluate_templates call, the placeholders are replaced by the variable values. The kmos3.utils.evaluate_template method accepts arbitrary keyword arguments. In addition, the kmos3.io.ProcListWriter.write_template is passed the current instance of the ProcListWriter class as self, the loaded KMC model instance (i.e., the kmos3.types.Project) as data, and an options dictionary with additional settings as options.

With such template files it is possible to include some programmatically dependence on the model characteristics and other settings to an otherwise mostly static file. For example, in the proclist_constants.mpy template, the following lines

for i, process in enumerate(self.data.process_list):
    ip1 = i + 1
    #@ integer(kind=iint), parameter, public :: {process.name} = {ip1}

hard-code the names and corresponding assigned indices used to reference processes throughout the code.

`write_proclist`

Routines used to write proclist and associated modules for the different backends.

ProcListWriter.write_proclist
├── if code_generator = 'local_smart'
│   ├── ProcListWriter.write_proclist_generic_part
│   │   ├── ProcListWriter.write_proclist_constants
│   │   └── ProcListWriter.write_proclist_generic_subroutines
│   ├── ProcListWriter.write_proclist_run_proc_nr_smart
│   ├── ProcListWriter.write_proclist_put_take
│   ├── ProcListWriter.write_proclist_touchup
│   ├── ProcListWriter.write_proclist_multilattice
│   └── ProcListWriter.write_proclist_end
├── if code_generator = 'lat_int'
│   ├── ProcListWriter.write_proclist_constants
│   ├── ProcListWriter.write_proclist_lat_int
│   │   ├── ProcListWriter._get_lat_int_groups
│   │   ├── ProcListWriter.write_proclist_lat_int_run_proc_nr
│   │   ├── ProcListWriter.write_proclist_lat_int_touchup
│   │   ├── ProcListWriter.write_proclist_generic_subroutines
│   │   ├── ProcListWriter.write_proclist_lat_int_run_proc
│   │   └── ProcListWriter.write_proclist_lat_int_run_nli_casetree
│   └── ProcListWriter.write_proclist_end
└── if code_generator = 'otf'
    ├── ProcListWriter.write_proclist_pars_otf
    ├── ProcListWriter.write_proclist_otf
    │   ├── ProcListWriter.write_proclist_generic_subroutines
    │   ├── ProcListWriter.write_proclist_touchup_otf
    │   ├── ProcListWriter.write_proclist_run_proc_nr_otf
    │   └── ProcListWriter.write_proclist_run_proc_name_otf
    └── ProcListWriter.write_proclist_end

The scheme above shows the methods called by kmos3.io.ProcListWriter.write_proclist to write proclist.f90 and, for lat_int and otf, related files (proclist_constants.f90, proclist_pars.f90, run_proc_*.f90, nli_*.f90). All these kmos3.io.Proclist.write_proclist_* methods take an out argument, which is a file object to which the code is to be written and most take a data argument, which is an instance of kmos3.types.Project containing the abstract KMC model definition. Many of them also take a code_generator keyword argument with the backend’s name. In what follows, we briefly describe each of the individual methods. For clarity, they have been categorized according to the backend by which they are used. In cases for which the same routine is called in more than one backend, the description is presented only once.

Methods Called to Build `local_smart` Source Code

`write_proclist_generic_part`

This routine is only used by the local_smart backend. Generic part refers to the auxiliary constants defined in proclist (which exist in a separate file in lat_int and otf) and the functions whose code does not depend on the process details (e.g., proclist/do_kmc_steps).

`write_proclist_constants`

Uses the proclist_constants.mpy template to generate code defining named constants for the indices of each process and each species on the model. In local_smart this is added at the top of the proclist.f90 file; in lat_int and otf this is included separately as the proclist_constants.f90 file.

`write_proclist_generic_subroutines`

Uses the proclist_generic_subroutines.mpy template to write several routines not directly related with the tree search of process updates, namely: do_kmc_steps, do_kmc_step, get_next_kmc_step, get_occupation, init, initialize_state, and (only for otf) recalculate_rates_matrix.

`write_proclist_run_proc_nr_smart`

Writes the proclist/run_proc_nr function, which calls put and take routines according to the process selected by base/determine_procsite. This is basically a nested for-loop, first over the processes and then over the actions of such process. The only tricky part is to correctly input the relative coordinate for which the take and put routines need to be called. This is done with the help of the kmos3.types.Coord.radd_ff method.

`write_proclist_put_take`

This is the most complex part of the local_smart code generator, in charge of writing a put and a take routine for each combination of site type and species in the model (except for the default species). These routines need to decide which events to activate or deactivate given an specific change in the lattice state.

The write_proclist_put_take is organized as several nested for loops. The outermost goes through each species in the model, the following through each layer and site type, and the next through the two possibilities, put and take. At this point, a specific put_<species>_<layer>_<site> or take_<species>_<layer>_<site> subroutine is being written.

For each of these routines, it is necessary to check which events (located relative to the affected site) can potentially be activated or deactivated by the operation being executed. This is done with further nested loops, going through each process and then through each condition of such process.

If a fulfilling match is found (i.e., the species and site type of the condition matches the site and species of a put routine or there is a condition associated to the default species on the site affected by a take routine) a marker to the corresponding process is stored in the enabled_procs list. This marker is a nested tuple with the following structure:

first a list of kmos3.types.ConditionAction objects (see below)
then a tuple containing
- the name of the process
- the relative executing coordinate of the process with respect to the matching condition
- a constant True value.

The list of ConditionAction objects contain an entry for each of the conditions of the given process, except for the condition that matched. The species are the same, but the coordinates of the these new ConditionAction objects are relative to the the coordinate of the matching condition. This way, we gain access to the position of the conditions of the events that can potentially be activated by the put or take routine relative to the position that is being affected in the surface. Note that potentially more than one marker could be added to the list for a given process. This would correspond to the possibility of different events associated to the same process being activated.

If an unfulfilling match is found, a tuple is added to the disabled_procs list. This tuple contains

the process object and
the relative position of the process with respect to the matching condition.

There is less information in this case because the logic for disabling processes is much simpler than that for enabling them.

Once these enabled_procs and disabled_procs lists have been collected, a del_proc statement for each event in disabled_procs is written. Finally, the routine needs to write the decision tree to figure out which events to activate. This is done by the kmos3.io.ProcListWriter._write_optimal_iftree method, which calls itself recursively to build an optimized select-case tree.

_write_optimal_iftree expects an object with the same structure as the enabled_procs list as input. This is called items in the method’s body. At the start, each entry of the list corresponds to an event that potentially needs to be activated. Associated to each of those, there is a list of all conditions missing for this events to be activated. If in the initial call to _write_optimal_iftree one of the events has no missing conditions (i.e., the corresponding list is empty), this means that their only condition was whatever the put or take routine provided. Consequently, the first step this method takes is to write a call to add_proc for those events (if any). Such events are then to be removed from the items list.

Next, the procedure that heuristically optimizes the if-tree starts. From items, it is possible to obtain the most frequent coordinate, i.e., that which appears most often within the lists of missing conditions. Such coordinate is selected to be queried first in the select-case tree. The possible cases correspond to the different possible species adsorbed at this coordinate. The routine iterates through those. For each species, it writes first the case statement. Then, the processes in items whose condition in the most frequent coordinate matches the current species are added to a reduced items list called nested_items. Next, the condition in the most frequent coordinate will be removed from the nested_items, creating the pruned_items list. This reduced list is used as input for a successive call to _write_optimal_iftree. The events that were included in nested_items are then removed from the items list.

It is possible (likely) that not all events will have conditions in the most frequent coordinate. If this is the case, _write_optimal_iftree needs to be called again to start an additional top-level case-tree to explore those processes.

In this way, further calls are made to _write_optimal_iftree, each of which in which the items list is shorter, of the item themselves contain fewer conditions. These calls “branch out”, but each branch eventually leads to calls with empty items list, which closes the corresponding branch. The decision tree finishes writing when all elements of enabled_procs have been exhausted.

`write_proclist_touchup`

This routine is in charge of writing the proclist/touchup_<layer>_<site>, one for each site type. These routines update the state of the lattice, one site at a time.

They first delete all possible events with executing coordinate in the current site. Then, they collect a list of all processes with executing coordinate matching the current site type. The list is built with the same structure as the enabled_procs list described in section (see write_proclist_put_take). This is then fed to the _write_optimal_subtree method, to build a decision tree that can decide which of those process are to be turned-on given the current state of the lattice.

`write_proclist_multilattice`

Todo

write_proclist_multilattice

`write_proclist_end`

This simply closes the proclist module with end module proclist.

Methods Called to Build `lat_int` Source Code

`write_proclist_lat_int`

This writes the header of the proclist.f90 file for lat_int and then calls several write_proclist_lat_int_* functions in charge of writing the different routines of the module. Before it can do this, it needs to call _get_lat_int_groups, a method that finds all lateral interaction groups and returns them as a dictionary. This dictionary has the names of the groups as keys and the corresponding lists of processes as values. The name of a group is the name of the process within it with the lowest index (this coincides with the first process in the group when sorted alphabetically).

`write_proclist_lat_int_run_proc_nr`

This functions is similar to its local_smart counterpart (see write_proclist_run_proc_nr_smart). The only difference is that this routine needs to decide between lateral interaction groups instead of individual processes, as selecting the individual process within the group is done by the nli_* subroutines. For this reason, the indices of all processes of a group are included inside the case( ... ) statements.

`write_proclist_lat_int_touchup`

Writing the touchup functions is much simpler here than in local_smart, as here we can rely on the nli_* functions (see write_proclist_lat_int_nli_casetree). As in local_smart, all processes are deleted (just in case they were activated). Then add_proc is called for each lateral interaction group, using the result of the corresponding nli_<lat_int_group> function as input. Thus, an event will be added only if that function returns non-zero.

`write_proclist_lat_int_run_proc`

This method writes a run_proc_<lat_int_nr> module for each lateral interaction group. Each of these modules is located in its own file. The first step for writing the modules consists of finding all lateral interaction event groups which are affected by the actions of the current lateral interaction group. These are included in the list modified_procs. Once the list is built, a del_proc call is written for each of them, using the results of the corresponding nli_<lat_int_group> as argument. Then, it writes calls to replace_species to update the lattice. Finally, a call to add_proc is added for each element of modified_procs, using the corresponding nli_<lat_int_group> as argument.

`write_proclist_lat_int_nli_casetree`

This method writes the nli_* routines, which decide which, if any, of the processes in a lateral interaction group can be executed in a given site of the lattice. For this, the method builds a nested dictionary, case_tree, which encodes the decision tree. This is then translated into a select-case Fortran block by the kmos3.io._casetree_dict function.

Methods Called to Build `otf` Source Code

`write_proclist_pars_otf`

This method is only used by the otf backend. It is in charge of writing the proclist_pars.f90 file. This module has two main roles:

provide access to the user-defined parameters and other physical parameters and constants at the Fortran level.
provide the routines, which evaluate the rate constants during execution.

The routine first writes the declaration of the userpar array, used to store the value of the user-defined parameters. In addition, auxiliary integer constants (named as the parameters in the model) are declared to help with the indexing of this array. The _otf_get_auxiliary_params method is used to collect lists of constants, including the definitions of physical units, atomic masses and chemical potentials used in the rate expressions in the model. The constants and atomic masses are declared as constants with their corresponding value (evaluated using kmos3.evaluate_rate_expression). If needed, a chempot array is included, which is used to store the value of the chemical potentials used in the model (auxiliary indexing variables are also included for this array).

In addition, this method writes a routine to update userpar from the Python interface, and another to read the values of such array. If needed, a routine to update chempots is also added.

This routine also writes the functions used to evaluate the rate constants during execution. For each process, a gr_<process_name> and a rate_<process_name> are written. gr_<process_name> loops through all the bystanders to count how many neighbors of a given species there is for each “flag” associated to the process (see as determined by its bystanders). These counts are accumulated in the nr_vars array. This array is used as input to the corresponding rate_<process_name> routine. The content of this routine is directly obtained from the otf_rate attribute of the the kmos3.types.Process object. This user-defined string is processed by the _parse_otf_rate method to replace the standard parameter and constant names with the names understood by this Fortran module.

`write_proclist_touchup_otf`

This method writes the subroutines used to initialize the state of the bookkeeping arrays at the start of a simulation. For this, it calls the _write_optimal_iftree_otf with all possible events associated to the current site (i.e., with all processes). The routine _write_optimal_iftree_otf is very similar to the _write_optimal_iftree routine, which is used by write_proclist_run_proc_nr_smart of the local_smart backend (see write_proclist_put_take). The most remarkable difference is that in otf the add_proc routine needs to be called with the result of a gr_<proc_name> routine as an argument (to evaluate the current value of the event’s rate constant).

`write_proclist_run_proc_nr_otf`

The subroutine written by this method is very similar to its counterpart in the lat_int backend, only needing to decide which specific run_proc_<procname> function to call.

`write_proclist_run_proc_name_otf`

The run_proc_<proc_name> routines are the ones in charge of updating the bookkeeping arrays once a given event has been selected for execution. They are similar to their counterpart in lat_int in that there is one for each lateral interaction group. In otf there is only one process per lateral interaction group, so there is one such routine per process. They are also similar to the put_* and take_* subroutines from local_smart because they use very similar logic to build the hard-coded decision trees. The main difference between these backends is that the run_proc_<proc_name> routines of otf implement decision trees that take into account the changes in all sites affected by a process, while in local_smart put_* and take_* routines consider only an elementary change to a single site.

The first thing that write_proclist_run_proc_name_otf does is to collect a list with all the events for which one of the actions of the executing process unfulfills a condition (inh_procs), a list with all the processes for which they fulfill a condition (enh_procs) and a list with all the processes for which they modify the state of one of the bystanders (aff_procs). The processes that are included in inh_procs list are excluded from the other two lists.

Once this is done, calls to del_proc are written for all processes in inh_procs. Then, calls to the replace_species subroutine are added, so as to update the lattice according to the actions of the executing process. Afterwards, the subroutine update_rates_matrix is called for each process in aff_procs to update the corresponding rate constant.

As in the case of local_smart the most complex operation is that of activating processes, as the state of the lattice needs to be queried efficiently. To do this, a new list, enabling_items, is built based on the enh_procs list. enabling_items contains an entry for each process in enh_process. These entries are tuples containing:

a list of conditions which are not satisfied by the executing event
a tuple containing:
- the name of the process
- the relative position of the process with respect to the coordinate of the executing process
- a constant True value.

This list is analogous to the enabled_procs list used by the write_proclist_put_take routine of the local_smart backend (see write_proclist_put_take). This list is used as input for the _write_optimal_iftree_otf method. This is very similar to the _write_optimal_iftree, with the only difference that calls to add_proc also need to include the result of the gr_<proc_name> functions as arguments.

Development

GitLab Access

Issues

Documentation

Branches

Tags

Commits

Merges

CI/CD

Developer’s Guide

Introduction

How to Edit, Install, and Test Your Changes Locally

Some Nomenclature

The Three Backends

local_smart

lat_int

otf

The Fortran Code Files

local_smart

base.f90

lattice.f90

proclist.f90

lat_int

proclist.f90

proclist_constants.f90

nli_<lat_int_nr>.f90

run_proc_<lat_int_nr>.f90

otf

proclist.f90

proclist_constants.f90

proclist_pars.f90

run_proc_<proc_nr>.f90

Key Data Structures

Important Scalar Variables

Important Arrays

rates

lattice

nr_of_sites

accum_rates

avail_sites

procstat

otf-Specific Arrays

accum_rates_proc

rates_matrix

One KMC Step in kmos3

local_smart

The put and take Routines

Updating avail_sites

lat_int

otf

The Code Generation Routines

Source File Templates

write_proclist

Methods Called to Build local_smart Source Code

write_proclist_generic_part

write_proclist_constants

write_proclist_generic_subroutines

write_proclist_run_proc_nr_smart

write_proclist_put_take

write_proclist_touchup

write_proclist_multilattice

write_proclist_end

Methods Called to Build lat_int Source Code

write_proclist_lat_int

write_proclist_lat_int_run_proc_nr

write_proclist_lat_int_touchup

write_proclist_lat_int_run_proc

write_proclist_lat_int_nli_casetree

Methods Called to Build otf Source Code

write_proclist_pars_otf

write_proclist_touchup_otf

write_proclist_run_proc_nr_otf

write_proclist_run_proc_name_otf

`local_smart`

`lat_int`

`otf`

`local_smart`

`base.f90`

`lattice.f90`

`proclist.f90`

`lat_int`

`proclist.f90`

`proclist_constants.f90`

`nli_<lat_int_nr>.f90`

`run_proc_<lat_int_nr>.f90`

`otf`

`proclist.f90`

`proclist_constants.f90`

`proclist_pars.f90`

`run_proc_<proc_nr>.f90`

`rates`

`lattice`

`nr_of_sites`

`accum_rates`

`avail_sites`

`procstat`

`otf`-Specific Arrays

`accum_rates_proc`

`rates_matrix`

`local_smart`

The `put` and `take` Routines

Updating `avail_sites`

`lat_int`

`otf`

`write_proclist`

Methods Called to Build `local_smart` Source Code

`write_proclist_generic_part`

`write_proclist_constants`

`write_proclist_generic_subroutines`

`write_proclist_run_proc_nr_smart`

`write_proclist_put_take`

`write_proclist_touchup`

`write_proclist_multilattice`

`write_proclist_end`

Methods Called to Build `lat_int` Source Code

`write_proclist_lat_int`

`write_proclist_lat_int_run_proc_nr`

`write_proclist_lat_int_touchup`

`write_proclist_lat_int_run_proc`

`write_proclist_lat_int_nli_casetree`

Methods Called to Build `otf` Source Code

`write_proclist_pars_otf`

`write_proclist_touchup_otf`

`write_proclist_run_proc_nr_otf`

`write_proclist_run_proc_name_otf`
